Coarse Thread Drywall Screws

Product Introduction

Coarse Thread Drywall Screws feature a Phillips bugle head and coarse-thread design for efficient drywall installation and secure fastening in interior construction and gypsum board applications.

Get A Quote
PREV：No previous article
NEXT：No next article
Core Advantages Application Scenarios OEM / ODM Services Why Choose Us FAQ Technical Parameters Inquiry Form

Core Advantages

1. Efficient Drywall Installation

The coarse thread provides strong thread engagement for Coarse Thread Drywall Screws, while the Phillips bugle head supports convenient screwdriver or power-tool installation. Available sizes range from 3.5 to 4.8 mm, covering common drywall fastening requirements.

2. Stable Bugle Head Design

The Drywall Screw uses a bugle head with a head diameter of 7.90–9.40 mm, helping distribute fastening pressure around the screw head and supporting a neat finish on drywall surfaces.

3. Reliable Mechanical Performance

These Coarse Thread Drywall Screws are manufactured from C1018–C1022 steel, with a surface hardness of a minimum of 550 HV and core hardness of 240–450 HV. The specified case depth reaches 0.05–0.23 mm, depending on the screw size.

Application Scenarios

Drywall Installation
Gypsum Board Installation
Interior Construction
Partition Walls
Ceiling Systems
Wall Panels
Residential Construction
Commercial Construction
Contractor Supply
Wholesale Distribution

OEM / ODM Services

We manufacture Coarse Thread Drywall Screws in our own factory and provide OEM/ODM services for distributors, wholesalers, contractors, and construction material suppliers.

Available customization options include:

• Custom head height
• Custom raw material wire diameter
• Custom washer thickness

Why Choose Us

1. Integrated R&D, Production, Sales and Service

Founded in 2011, we are a comprehensive hardware enterprise integrating R&D, production, sales, and service. With in-house manufacturing and direct factory supply, we can control quality, cost, and lead time more effectively than trading companies.

2. Certified Quality Management System

We hold ISO 9001:2015 certification for our quality management system, covering the production of fasteners. This ensures consistent quality control and reliable production standards for bulk orders.

3. Wide Product Portfolio and Application Coverage

Our products cover construction hardware, furniture hardware, automotive hardware accessories, and precision mechanical parts, widely used in residential construction, commercial facilities, transportation vehicles, electronic equipment, and other industries.

FAQ

Q1: What is the MOQ for Coarse Thread Drywall Screws?

The standard MOQ is 100,000 pcs for bulk orders.

Q2: What payment terms do you accept?

We accept cash on delivery according to the agreed order terms.

Q3: Do you provide OEM and ODM services?

Yes. We support customization of head height, raw material wire diameter, and washer thickness for OEM and ODM orders.

Q4: What is the production lead time for Coarse Thread Drywall Screws?

The standard production lead time is approximately 45 days after order confirmation.

Q5: What packaging options are available?

We provide carton, paper box, and plastic bag packaging according to customer requirements.

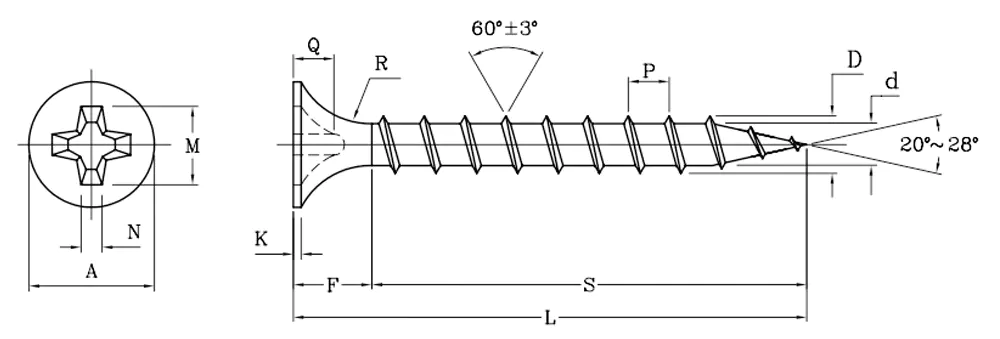

DETAILSSIZE HEAD DIA--A F MAJOR DIA.--D MINOR DIA.--d K PITCH--P RECESS DEPTH--Q R RECESS WIDTH--M N≈ TORQ.Kg-cm WIRE--Ø
#6(3.5mm) 7.90--8.50 4.50--7.00 3.50--3.90 2.05--2.35 0.50--0.80 2.70--2.80 2.35--2.93 4.50--5.00 4.50--5.10 0.81 28 min. 2.65 -0.02
#7(3.9mm) 7.90--8.50 4.50--7.00 3.80--4.20 2.20--2.50 0.50--0.80 2.70--2.80 2.35--2.93 4.50--5.00 4.50--5.10 0.81 28 min. 2.80 -0.02
#8(4.2mm) 7.90--8.50 4.50--7.00 4.20--4.60 2.55--2.85 0.50--0.80 2.80--2.90 2.35--2.93 4.50--5.00 4.50--5.10 0.81 45 min. 3.15 -0.02
#9(4.5mm) 7.90--8.50 4.50--7.00 4.40--4.80 2.80--3.10 0.50--0.80 2.80--2.90 2.35--3.18 4.50--5.00 4.50--5.10 0.81 55 min. 3.45 -0.02
#10(4.8mm) 8.80--9.40 4.50--7.00 4.90--5.35 3.05--3.35 0.50--1.00 3.10--3.20 2.50--3.18 4.50--5.00 4.50--5.10 0.81 65 min. 3.80 -0.02
#7 L>2"~(M3.9>50mm) 7.90--8.50 4.50--7.00 4.00--4.40 2.35--2.65 0.50--0.80 2.70--2.80 2.35--2.93 4.50--5.00 4.50--5.10 0.81 35 min. 2.95 -0.02
THREAD LENGTH
L＜55mm, S=FULLY
L＞56mm＜75mm, S = 50 mm.
L> 76 mm, S = 60 mm.
LENGTH TOLERANCE
L  ±1.50
REMARKS
1 PART PRODUCTION WILL PROCEED ACCORDING TO DIMENSIONS CONTAINED IN THIS DRAWING
2 SURFACE HARDNESS MIN. 550 HV
3 CORE HARDNESS 240 ~ 450 HV
4 MATERIAL C1018 ~ C1022
5 DEPTH OF HARDNESSM3.5 : 0.05 ~ 0.18mmM3.9~M4.8 :0.10 ~ 0.23mm

MOQ  100,000 pcs
Lead Time  45 days
